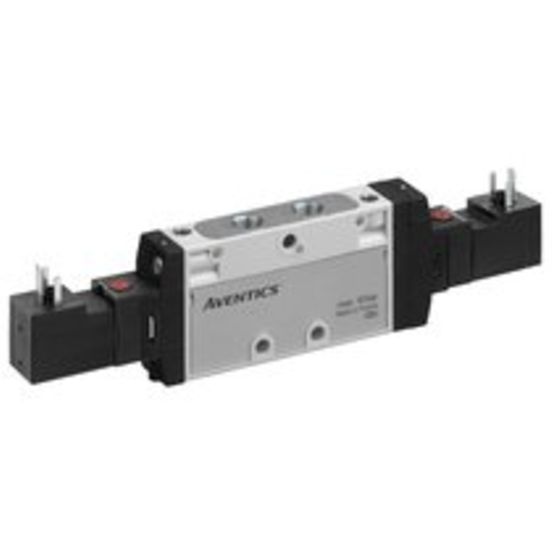

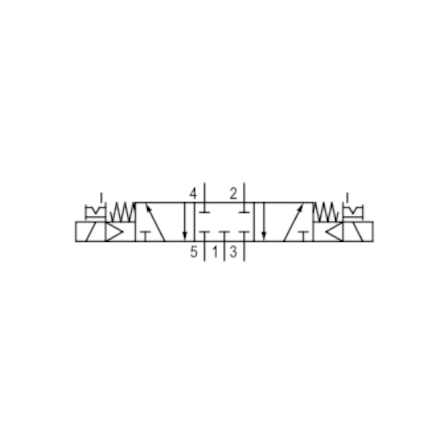

Tc 08 5/3 ventil 24v 1/8" stengt Varenummer: 0 820 061 001 TC08-5/3CC-DO-024DC-I-FORM_C-SGL 2 190,- Pris eks. mva. pr. stk. Lagerbeholdning: 2 Antall produkter Kjøp Beregn frakt Ditt postnummer Sjekk fraktpris Regner ut... Tekniske data Enhet Verdi Activation Electrically Nominal flow Qn 700 l/min Switching principle 5/3 Version Closed Center Compressed air connection output G 1/8 Working pressure min. 3 bar Working pressure max 10 bar DC operating voltage 24 V Voltage tolerance DC -1 Manual override with detent Electrical connection type Plug Electrical connection size ISO 15217, form C Actuating control Double Solenoid Sealing principle Soft Seal Pilot Internal Pilot valve width 15 mm Valve type Spool valve, positive overlapping Connection type Pipe connection Control pressure min. 3 bar Control pressure max. 10 bar Min. ambient temperature -10 °C Max. ambient temperature 50 °C Min. medium temperature -10 °C Max. medium temperature 50 °C Medium Compressed air
