| Enhet |
Verdi |
|
Activation
|
Pneumatically
|
|
Nominal flow Qn
|
800 l/min
|
|

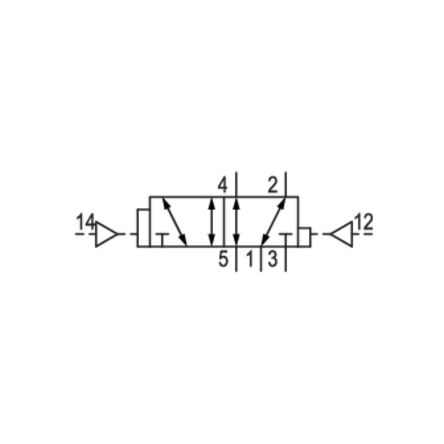

Switching principle
|
5/2
|
|
Compressed air connection output
|
G 1/8
|
|
Connection typePipe
|
connection
|
|
Working pressure min.
|
-0.9 bar
|
|
Working pressure max
|
10 bar
|
|
Sealing principle
|
Soft Seal
|
|
Valve type
|
Spool valve, positive overlapping
|
|
Pilot
|
External
|
|
Control pressure min.
|
2.5 bar
|
|
Control pressure max.
|
10 bar
|
|
Min. ambient temperature
|
-10 °C
|
|
Max. ambient temperature
|
50 °C
|
|
Min. medium temperature
|
-10 °C
|
|
Max. medium temperature
|
50 °C
|
|
Medium
|
Compressed air
|
|
Max. particle size
|
5 µm
|
|
Oil content of compressed air min.
|
0 mg/m³
|
|
Oil content of compressed air max.
|
5 mg/m³
|
|
Compressed air connection, exhaust
|
G 1/8
|
|
Compressed air connection pilot exhaust
|
M5
|
|
Flow conductance b
|
0.36
|
|
Flow conductance C
|
3.5 l/(s*bar)
|
|
Mounting on manifold strip
|
P-strip
|
