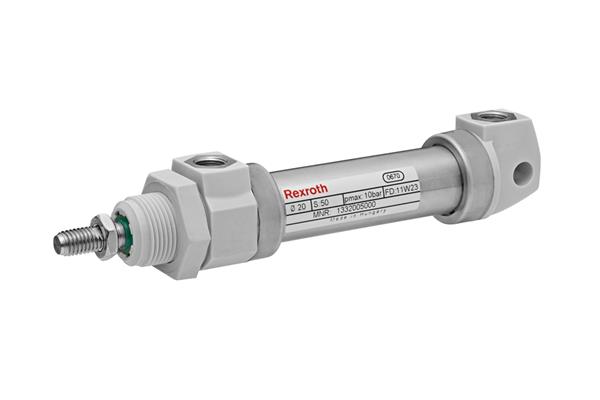

Aventics ICM Mini silynder
Varenummer:
132 201 600 1 WEB
> Ø 8 - 32 mm > Ports: M5 - G 1/8 > double-acting > cushioning: elastic > corrosion-resistant > with integrated rear eye > Piston rod: external thread
| Compressed air connection |
internal thread |
|
|
| Working pressure min./max. |
1,5 bar / 10 bar |
| Ambient temperature min./max. |
-20°C / +70°C |
| Medium temperature min./max. |
-20°C / +70°C |
| Medium |
Compressed air |
| Max. particle size |
50 µm |
| Oil content of compressed air |
0 mg/m³ - 5 mg/m³ |
| Pressure for determining piston forces |
6,3 bar |
|
|
| Cylinder tube |
Stainless steel |
| Piston rod |
Stainless steel |
| Front cover |
Polyoxymethylene |
| End cover |
Polyoxymethylene |
| Connection thread |
Stainless steel |
| Seal |
Acrylonitrile Butadiene Rubber |
| Nut for cylinder mounting |
Polyamide |
| Nut for piston rod |
Stainless steel |
| Scraper |
Acrylonitrile Butadiene Rubber |
- The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C.
- The oil content of air pressure must remain constant during the life cycle.
- Use only the approved oils from Bosch Rexroth, see chapter „Technical information“.
- nut MR 3 included in supply
