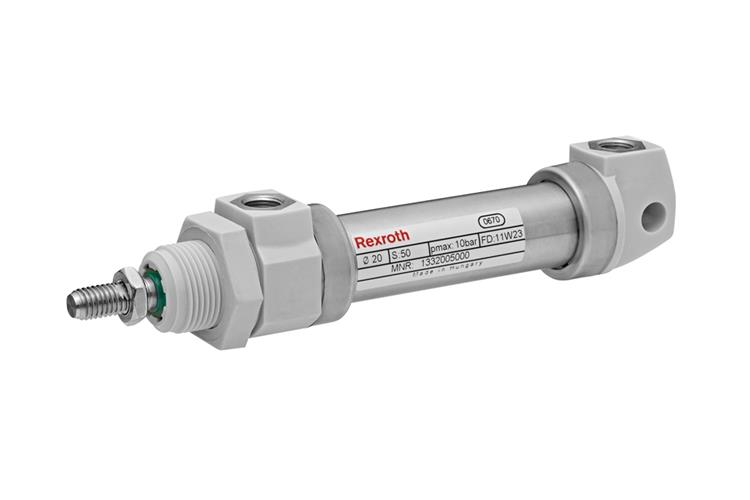

Aventics ICM Mini silynder Sylinder ø12x50mm Varenummer: 132 120 500 0 Tidligere eller alternative varenumre: 1321205000 Spesifikasjoner > Ø 8 - 32 mm > Ports: M5 - G 1/8 > double-acting > cushioning: elastic > corrosion-resistant > with integrated rear eye > Piston rod: external thread Compressed air connection internal thread Working pressure min./max. 1,5 bar / 10 bar Ambient temperature min./max. -20°C / +70°C Medium temperature min./max. -20°C / +70°C Medium Compressed air Max. particle size 50 µm Oil content of compressed air 0 mg/m³ - 5 mg/m³ Pressure for determining piston forces 6,3 bar Materials: Cylinder tube Stainless steel Piston rod Stainless steel Front cover Polyoxymethylene End cover Polyoxymethylene Connection thread Stainless steel Seal Acrylonitrile Butadiene Rubber Nut for cylinder mounting Polyamide Nut for piston rod Stainless steel Scraper Acrylonitrile Butadiene Rubber Technical Remarks The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C. The oil content of air pressure must remain constant during the life cycle. Use only the approved oils from Bosch Rexroth, see chapter „Technical information“. nut MR 3 included in supply Tekniske data Enhet Verdi Diam. mm 12 Gjenger M6 Kraft 6 bar 53 Ansl port M5 Slaglengde mm 50 Varianter
