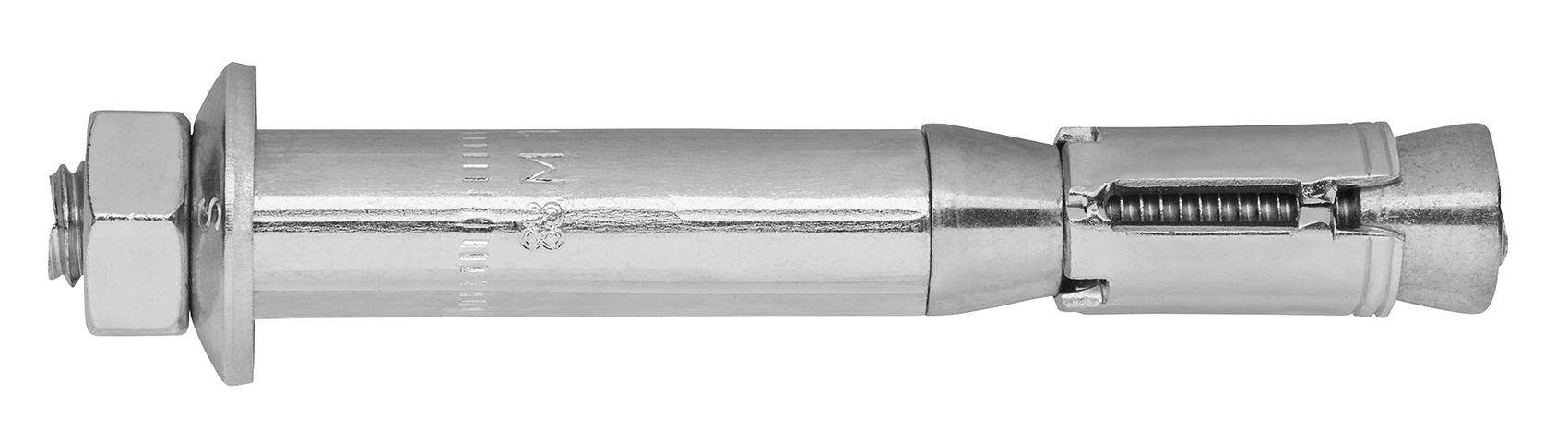

Sikkerhetsekspander S-VAM 25/65B

Varenummer:
 EKS 32565

Legendary twin-cone heavy duty anchor for hi-power performance

  • Torque-controlled twin-cone heavy duty anchor for push-through installations.
  • Suitable for heavy loads due to optimal friction resistance.
  • Cylindrical, wide expansion of sleeve over entire length.
  • Equipped with domed washers providing a visual installation control.
  • ZP for dry indoor and temporary outdoor use.
150,-
  • Pris eks. mva. pr. stk.
  • Lagerbeholdning: 19

Beregn frakt

Applications

  • Steel structures
  • Machines
  • Guardrails
  • Car lifting systems
  • Railings
  • Base plates
  • Warehouse racks

Base materials

Approved for
  • Cracked concrete
  • Non-cracked concrete

Also suitable for

  • Natural stone

Approvals / Certificates



ETA-06/0108 + DoPs

0809-CPR-1075

Fire resistance (ETA-06/0108)


Performance data

Base material
All
 Load type Embedment depth (hnom) Load direction Load value
Non-cracked concrete C20/25 NRec 114 mm Tension 24.0 kN
Non-cracked concrete C20/25 VRec 114 mm Shear 48.0 kN
Cracked concrete C20/25 NRec 114 mm Tension 17.1 kN
Cracked concrete C20/25 VRec 114 mm Shear

34.3 kN

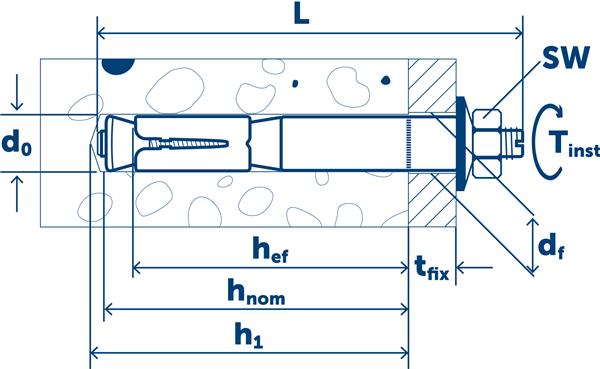

Enhet Verdi
Hole in fixture (Df) 26
Drill hole diameter (d0) Ø 25
Minimum drill hole depth 125
Drill hole depth (h1) 125
Nominal setting depth (Hnom) 114
Effective setting depth (Hef) 100
Installation torque (Tinst) 115
