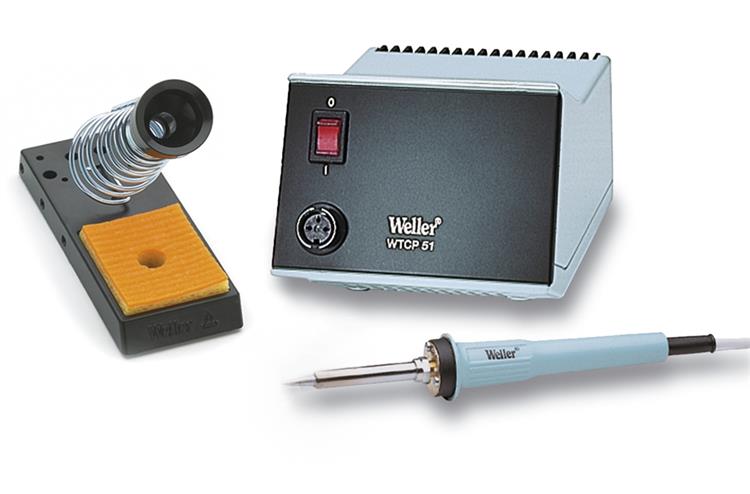

Soldering Station Magnastat 50 W, 230 V
The Weller Magnastat system operates through a ferro-magnetic device which changes ist characteristics
when specific temperatures are reached. This causes it to either attract or repel a permanent magnet which
operates a power supply switch. In this way power to the heating element can be quickly switched on or off to
either provide extra power for soldering operations or reduced power when idling. Various preselected tip
temperatures (260°C, 310°C, 370°C, 425°C, 480°C) are available for different soldering tasks. The unit is not
suitable for ESD application because the iron is not antistatic.
Top Attributes
On / Off controller
Temperature control variable by soldering tip exchange
Protection class 1
Antistatic housing
Hard grounded
Dimensions: 166 x 115 x 101 mm (L x W x H)
Technical Data
| Equipotential Bonding/ hard grounding explanation |
Normal state |
| Temperatur control comment |
Magnetic |
| Display included & Size |
No display |
| ESD safe |
Yes |
| Equipotential Bonding/ hard grounding |
Yes |
| Display backlight |
No |
| Antistatic housing |
Yes |
| Temperature stability |
5 °C |
| Power unit wattage |
50 W |
| Mains supply Voltage |
230 V |
| Power supply frequency |
50 Hz |
| Output voltage |
24 V |
| Protection class Soldering iron |
3 |
| Protection class Control/ Power unit |
1 |
| Number of tools controlled simultaneously |
1 |
| Temperature accuracy |
9 °C |
| Temperature regulation |
260 - 480 °C |
